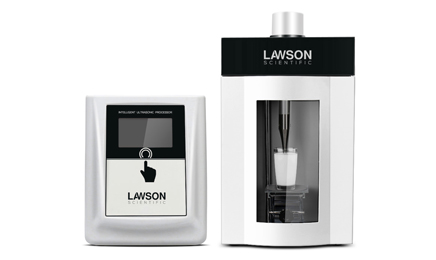

DH98-IIIDN
ultrasonic homogenizer
Power 1200W, crushing capacity 0.5-1000ml

Ultrasonic homogenizer DH98-IIIDN can safely process various organic and inorganic materials from 500 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assays, emulsification, deagglomeration and disaggregation, as well as applications in sonochemistry and liquid processing.

Product Introduction
DH98-IIIDN ultrasonic homogenizer can safely process various organic and inorganic materials from 500 microliters to 1 liter*. Typical applications include nanotechnology (production of nanomaterials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion and deagglomeration, as well as applications in sonochemistry liquid processing.

Product Features
◆Used for crushing cells, bacteria, spores, or tissue of animals and plants, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.
◆Accelerates reaction rates in chemistry, physics, and other fields, and accelerates liquid dehydration.
◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, and glass pulp homogenization.
◆Used for dispersing rare earths, various inorganic minerals, and preparing homogeneous mixtures with a particle size close to nanometers.
◆Used for rapid and strong high-precision cleaning of mold micropores and blind holes.

Objective
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.

Applicable Industries:
Biotechnology Industry:	Such as essential oil extraction, natural pigment extraction, polysaccharide extraction, flavonoid extraction, alkaloid extraction, polyphenol extraction, organic acid extraction, and fat extraction
Laboratory Applications:	Cell disruption, product grinding, material dispersion (preparation of suspensions), and aggregation
Chemical Industry:	Ultrasonic emulsification and homogenization, ultrasonic gel liquefaction, and resin defoaming
Biodiesel Production Industry:	Ultrasonic technology significantly enhances various chemical reactions in various chemical production processes
Water Treatment Industry:	Degradation of polluted water quality
Food and Cosmetics Industry:	Pureification of wines, refinement of cosmetic particles, and preparation of nano-particles
Graphene Industry:	Graphene dispersion and preparation of graphene nano-particles

Technical Parameters
Model:	DH98-IIIDN
Frequency:	20-25KHz
Power:	1200W
Standard Amplitude:	Φ15
Optional Amplitude:	Φ2, Φ3, Φ10, Φ20
Crushing Capacity:	0.5-1200ml
Duty Ratio:	1-99%
Power Supply:	220/110V 50Hz/60Hz
Power Supply Chassis Size:	400×280×220mm
Net Weight:	12.6kg
Main Unit + Transducer Weight:	14.5kg
Package Size:	534×295×435mm

Probe Model Selection
Model	Broken Cell Capacity
Φ2mm	150ul－5ml
Φ3mm	200ul－10ml
Φ6mm	10ml－150ml
Φ10mm	10ml－500ml
Φ15mm	50ml－1000ml
Φ20mm	50ml－1200ml

Single Page - Color Page
Name:	Author:	Action:
ultrasonic homogenizer DH98-IIIDN	Ultrasonic	Download

Related products
Name:	Model:
Ultrasonic graphene exfoliation	DH99-IIDN
ultrasonic homogenizer	DH98-IIIDN

Product List

DH98-IIIDN	Unit
Host Machine	Unit
Vibration System (Transducer Assembly)	Set
Soundproof box	set
Cross clamp (inside the soundproof box)	piece
Test tube clamp (inside the soundproof box)	piece
Special Wrench (used for disassembling the amplitu	Set
Fuses	piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1; 8A, 5A each 2; 1; 1; 1; 1
